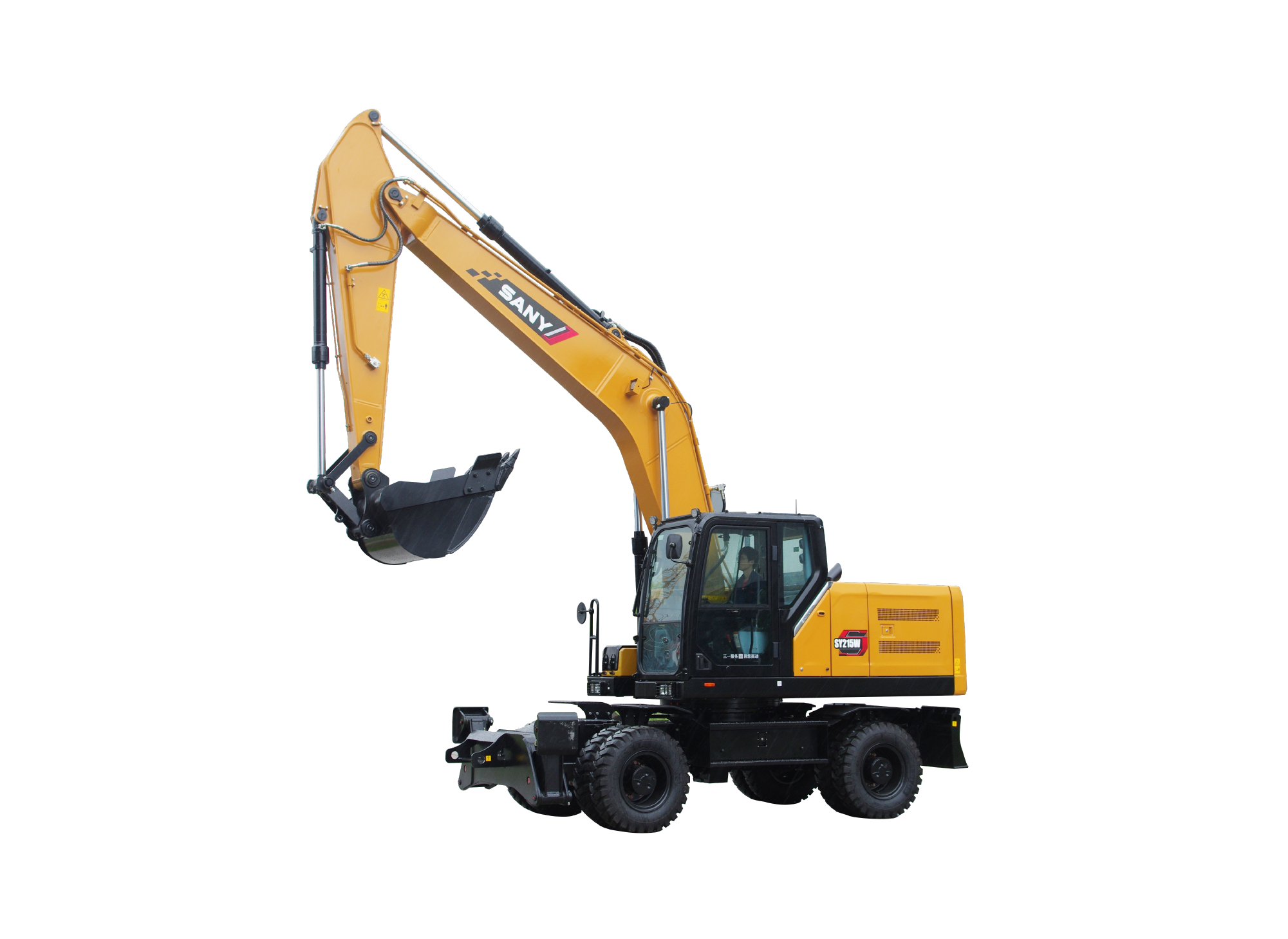

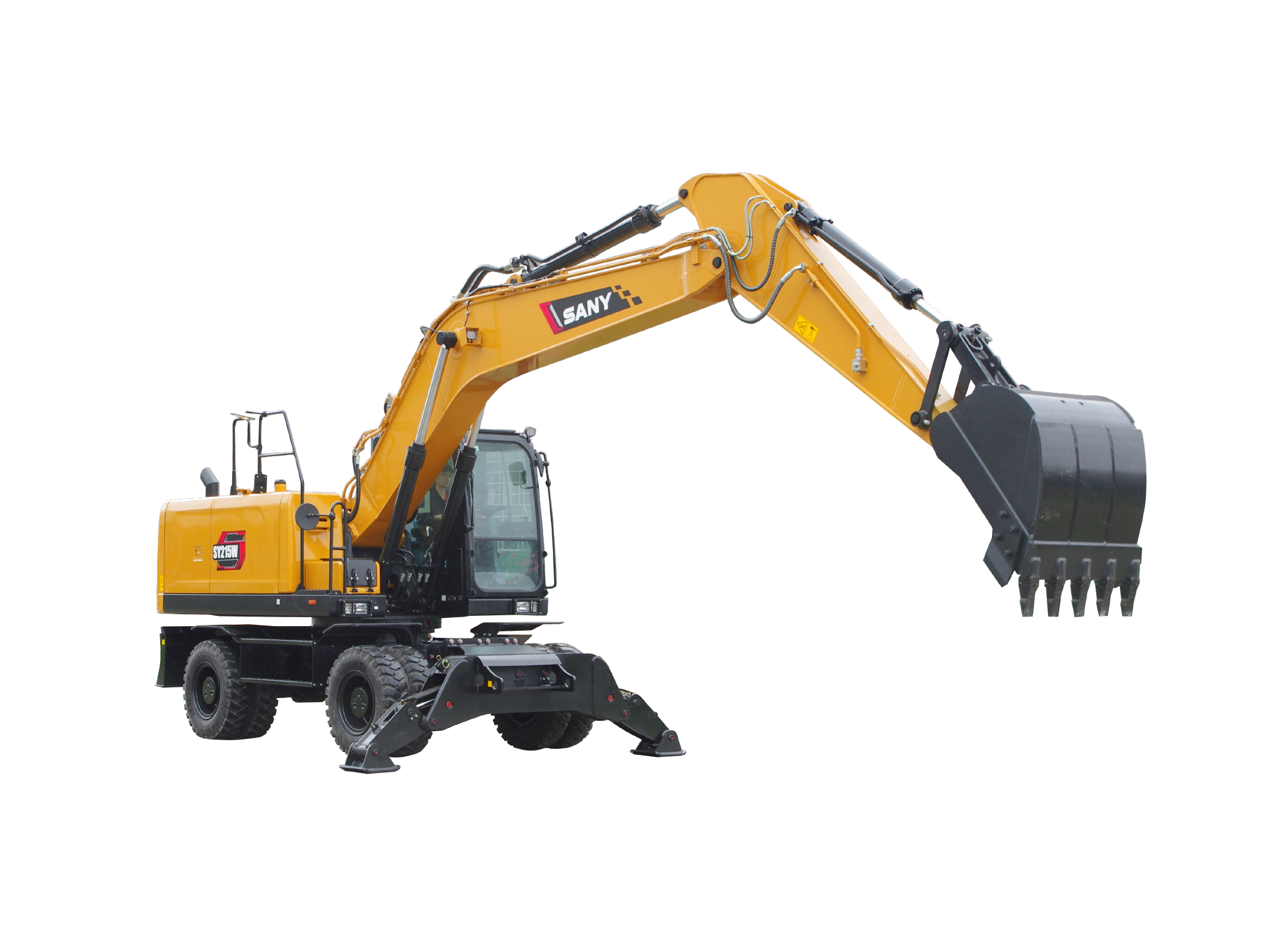

Crawler hydraulic excavator - SY215W Wheel excavator

Overall weight
Excavator capacity
Power
21500kg
0.93m³
128.4/2000kW/rpm

Hotline

+86 13920883606

Online

Price

$0.00

Details

Wheel excavator

Core configuration
Dynamic system Equipped with Isuzu 4HK1 engine, with a rated power of 128.4kW and a larger power margin, sufficient power reserve ensures the reliability of the machine in harsh working conditions.

Hydraulic system Equipped with an electronic control positive flow system, it can achieve precise power matching according to the needs of the load, achieve significant energy-saving effects, and comprehensively improve the overall handling and fuel economy of the machine.

Product selling points
Travel Pilot System Using a German ZF drive axle and gearbox, it can achieve gear shifting while driving, with a maximum walking speed of 38km/h, and achieve fast transitions. Full time four-wheel drive, the walking motor drives all four wheels directly through the gearbox and differential, and can cope with various road conditions. With a driving force of up to 120kN, the entire vehicle has super strong ability to escape difficulties. The gearbox is designed based on a planetary gear mechanism, with a 2-speed power shift transmission and a 360mm ground clearance, ensuring excellent off-road performance.

New driving and riding environment Equipped with a 7-inch display screen, rear camera, and one click start; Standard features include a water cup holder, mobile phone platform, sunroof sunshade, 12V power port, integrated with Bluetooth communication, USB interface, and entertainment functions; Optimize the control panel and walking control lever for a larger and more comfortable operating space.

Air conditioning upgrade Air conditioning duct optimization, using universal damping air outlets, layout optimization, higher wind speed, and stronger cooling effect.

Mainly suitable for sand fields, landscaping, pipeline construction, municipal public works and other engineering operations
