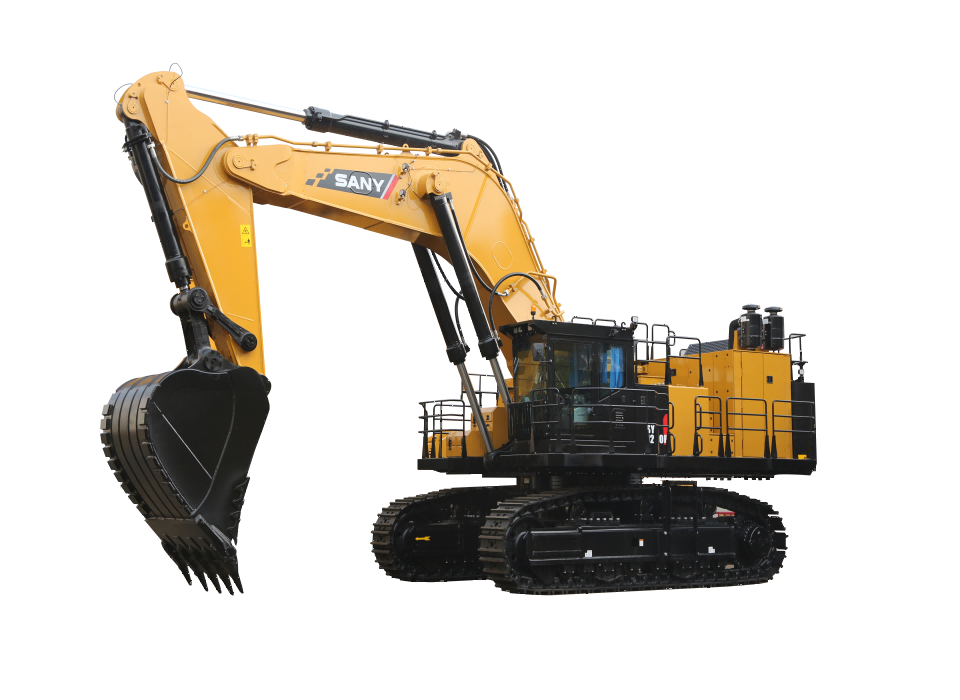

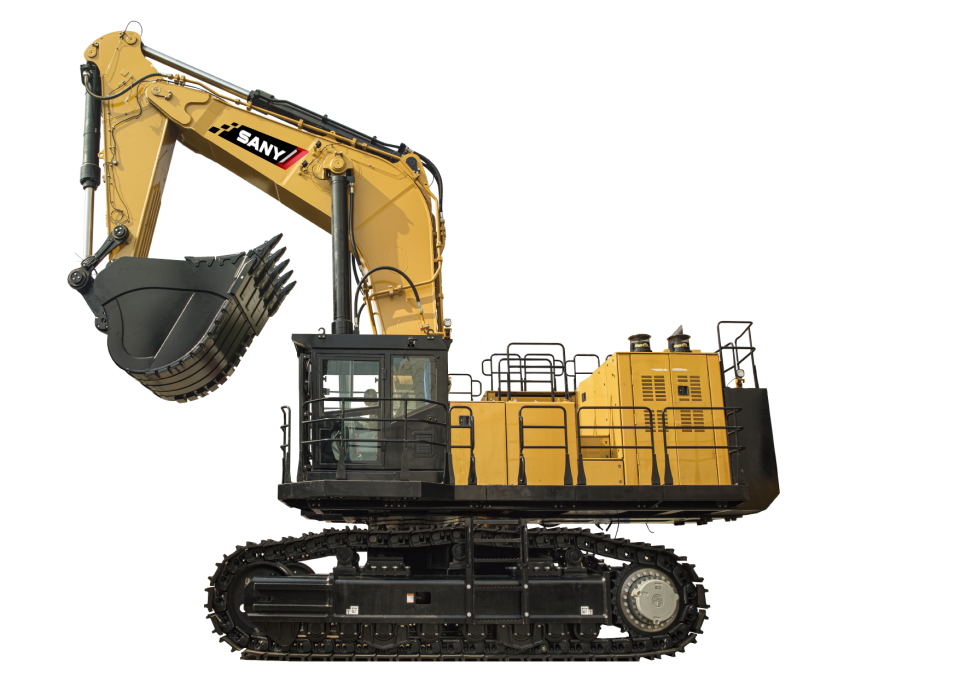

Large Excavator

Core Configuration

Dynamical system

Adopting Cummins QSK23 engine, with a power of 567kW/rpm, it has fast dynamic response, low fuel consumption, and is reliable and durable.

Hydraulic system

Adopting Kawasaki dual piston pump set K7V280DTH1M3L, with a pump flow rate of 4x500L/min, equipped with pressure cut-off function to reduce overflow loss

Kawasaki Electric Control Multi way Valve The main valve is an electrically controlled multi way valve KMX36NAE/P45203, with high responsiveness and low pressure loss.

Bucket Upgrade SY1350H comes standard with 10M ³ Mountain shaped rock buckets can be equipped with four series of buckets at the same time. Satisfy specific situations by using specific buckets, improve construction efficiency, easily cope with various complex working conditions, enhance product value and customer profitability.

Automatic lubrication Using an electric refueling machine, it is easy to operate, labor-saving and time-saving, does not waste oil, and ensures that the oil is not contaminated. Directly use the specialized barrel for finished oil, place this product directly on the grease inside the barrel, and power on to complete the grease filling.

Intelligence
Equipped with a 10 inch intelligent display screen, integrated with functions such as air conditioning, radio, Bluetooth, GPS, etc., it comes standard with one click start, supports fault detection and alarm, intelligent debugging and diagnosis, and is safer and more intelligent.

Comfortable driving space

The sealing of the cab has been greatly improved, with a brand new air conditioning duct design and optimized air outlet position for better cooling effect. Enlarged, widened, and thickened seats with seat extension, seat height, and lumbar support, optional power distribution heating, providing a more comfortable driving experience.

Mainly suitable for large-scale mining and other engineering projects
